Is 24 inch rock wool insulation available for industrial applications?

Large-diameter pipework creates thermal bridges. Standard-width insulation forces seams, raising energy loss and labor. Specifying 24 inch rock wool insulation eliminates gaps, cuts installation time, and ensures consistent λ value.

24 inch rock wool insulation is manufactured in slabs and pipe sections. Typical λ value: 0.034–0.040 W/m·K (EN 12667). Density: 80–180 kg/m³. Fire rating: Euroclass A1 (EN 13501-1).

Process engineers face real installation gaps when insulation widths don’t match equipment or pipe diameters. For 24 inch pipes, standard 600 mm insulation leaves seams and risks energy loss. I’ll detail how 24 inch rock wool insulation addresses that, plus its limitations and lab-tested specs.

Does ROCK WOOL come in 24 inches wide?

Standard widths don’t cover all process equipment sizes. Forcing narrow slabs on wide pipes increases joints, risking hot spots and moisture ingress.

Yes, 24 inch rock wool insulation is available. HUAYUE produces pipe sections for 24 inch (610 mm) OD pipes. Length: 1,000 mm. Density: 120–180 kg/m³. Fire class: Euroclass A1.

Dimensions and Availability

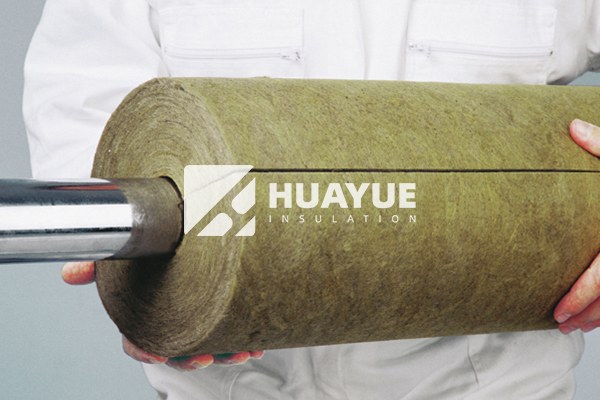

We manufacture 24 inch rock wool pipe sections for industrial pipelines. These are precision-cut to fit 610 mm outside diameter pipes, with wall thicknesses from 25 to 120 mm. Slabs can also be cut to 24 inches wide for vessel or duct insulation.

All 24 inch rock wool insulation is tested at our factory lab for thermal conductivity (EN 12667) and dimensional tolerance (EN 13467). Custom widths beyond 610 mm are possible for non-standard ducts.

Typical Applications

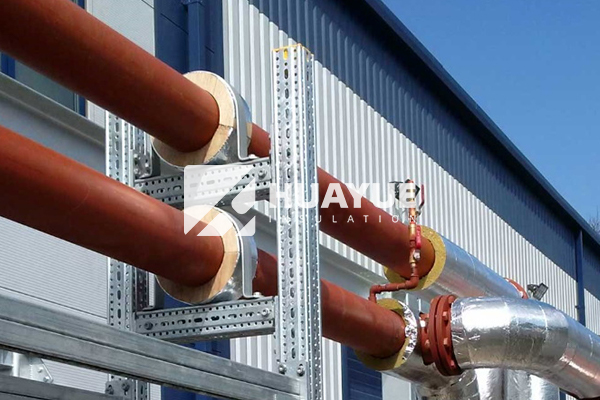

• 24” process and steam pipelines—chemical plants, refineries
• Large exhaust ducts—power plants
• Cylindrical vessels—food, pharma

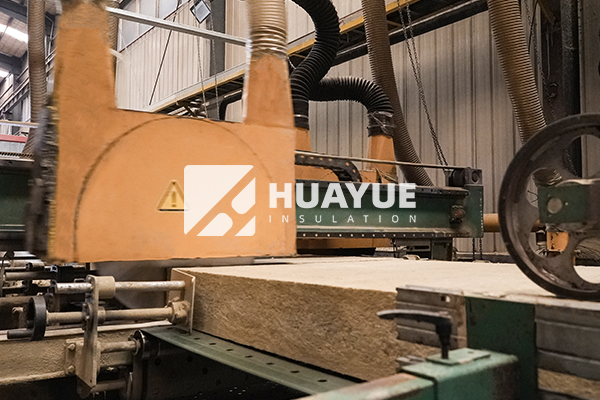

Slab insulation at this width is supplied flat, for on-site cutting or cladding. All products are CE-marked and meet EN/DIN requirements.

What are the downsides of ROCK WOOL insulation?

Rock wool’s fibrous structure can shed under vibration. Some engineers report water absorption if seams aren’t sealed. Mechanical compression may alter thickness and λ value.

Downsides: Rock wool can lose up to 10% thickness under heavy compression (>40 kPa). Water absorption: up to 1.0 kg/m² after 24h partial immersion (EN 1609).

Physical Limitations

Compression and Handling

Rock wool is semi-rigid. For 24 inch rock wool insulation, compressive strength is 30–40 kPa at 10% deformation (EN 826). If subjected to pipe supports or straps, thickness reduction may occur, increasing λ value locally. Always avoid over-tightening bands.

Moisture Absorption

Rock wool is water repellent by treatment, but not waterproof. After 24 hours partial immersion (EN 1609), water uptake is typically 0.8–1.0 kg/m². Prolonged leaks or poor vapor barriers increase risk of CUI (corrosion under insulation).

Fiber Release

During installation, cutting or handling can release fibers. We recommend PPE (EN 388 gloves, EN 149 masks) for installers. Once installed and jacketed, fiber migration is minimal.

Thermal Conductivity Drift

Compression or moisture absorption can increase λ value by 5–10%. Factory λ value is valid for dry, uncompressed material at 10°C mean temperature.

Is there a cheaper version of ROCK WOOL?

Budget constraints force consideration of lower-cost insulation. Cheaper rock wool may compromise density, fire class, or λ value—risking long-term TCO.

Lower-density 24 inch rock wool insulation (80–100 kg/m³) costs less but has higher λ value (0.039–0.042 W/m·K) and lower compressive strength. Fire rating remains Euroclass A1.

Specification and Cost Comparison

*Cost Index: relative to standard industrial grade

Cheaper variants meet fire codes but may not withstand heavy cladding or foot traffic. For horizontal pipes or high-vibration areas, higher density (≥120 kg/m³) is recommended to maintain thickness and λ value over service life.

Fit for Purpose

We recommend lower-density 24 inch rock wool insulation only for non-load bearing, indoor applications with no risk of mechanical damage. For outdoor or process-critical lines, invest in higher density for long-term performance.

Do mice chew through ROCK WOOL insulation?

Biological attack is a concern for organic insulation. Engineers want to know if rock wool deters rodents and insects.

No, mice rarely chew through 24 inch rock wool insulation. It is mineral-based, non-nutritive, and causes oral irritation. Field failures are usually due to loose jacketing, not material attack.

Biological Resistance

Rodents and Insects

Rock wool fibers are made from spun basalt and slag, with no organic content. Mice and rats avoid burrowing or nesting in rock wool due to fiber irritation. In decades of field data, we see almost no vermin damage on properly jacketed 24 inch rock wool insulation.

Typical Failure Modes

Where rodents are present, failures result from gaps in metal jacketing or damaged vapor barriers, not the insulation itself. Once the external shell is breached, rodents may tunnel along air gaps, but do not eat or degrade rock wool fibers.

Testing and Standards

Our rock wool is tested for resistance to biological and fungal growth (EN ISO 846, EN 16785-2). No significant colonization or degradation observed.

Installation Best Practices

• Ensure all seams and joints are tightly sealed with metal bands
• Inspect for mechanical damage after installation
• Use mesh barriers if rodent pressure is high

Can you get 24 inch wide insulation?

Non-standard equipment often needs custom insulation. Engineers must ensure availability before specifying.

Yes, you can order 24 inch wide insulation. HUAYUE offers rock wool slabs and pipe sections at 610 mm width, certified to EN 13162 and EN 14303. Minimum order quantities apply.

Custom Orders and Lead Times

We routinely produce 610 mm (24 inch) wide rock wool insulation for major projects. Orders can specify:

• Pipe sections: 24 inch (610 mm) ID, 25–120 mm wall thickness, 1,000 mm length
• Flat slabs: 610 mm width, 30–100 mm thickness, cut to length

Lead time: typically 2–3 weeks for standard density (120–150 kg/m³), longer for special grades or facing options.

Certifications

All 24 inch rock wool insulation is:

• CE marked for EU market
• Factory tested for λ value (EN 12667), density (EN 1602), compressive strength (EN 826), fire class (EN 13501-1)
• Supplied with DoP (Declaration of Performance)

Application Fit

Specifying 24 inch width reduces installation seams, improves energy efficiency, and meets European code requirements. For curved surfaces, pre-formed pipe sections or flexible slabs are available.

Conclusion

24 inch rock wool insulation is available as pipe sections and slabs, certified to EN 13162/EN 14303. λ value: 0.034–0.040 W/m·K. Density: 80–180 kg/m³. Specify to reduce seams and meet EU standards.
