R19 Insulation for 2x4 Walls: Is It the Right Choice?

If you have ever wondered about using R19 insulation in 2×4 walls, you may be worried about energy bills, comfort, or code compliance. Let’s address your concern.

R19 insulation is not typically recommended for 2×4 walls because its thickness exceeds the stud depth. Most 2×4 walls use R13 or R15 batt insulation to fit properly and maximize efficiency.

Choosing the right insulation is important for your home’s comfort and energy use. It is easy to see high R-value ratings and want the best, but you must match insulation type to wall structure. If you try to squeeze too thick an insulation batt into a small cavity, you risk compressing it, which reduces its effectiveness. Read on and I will break down the options to help you make a good decision.

What is the best R-value insulation for a 2×4 wall?

Everyone wants their home to be warm in winter and cool in summer. Picking insulation with the right R-value for your wall is essential, but choices can be confusing.

The best R-value for a standard 2×4 wall is R13 to R15. These values balance energy efficiency, material cost, and proper fit, so the insulation works at its rated performance level.

Going deeper into this, the R-value measures how well insulation blocks heat transfer. It does not always mean “more is better” because fit matters. A 2×4 stud wall has about 3.5” of cavity depth. You cannot fit higher-rated batts like R19 or R21 (which are about 6.25” thick) into such a shallow space without compressing them. Once compressed, these thicker batts lose much of their R-value and act more like a standard R13 or R15 batt. I learned this firsthand when I tried upgrading my own walls years ago—it is tempting to use the highest number, but if it cannot fit right, it simply won’t work as you hope. Best to choose insulation designed for 2×4 cavities.

R13 vs R15 vs R19 Insulation: Which Is Right for You?

Looking at several insulation choices can make anyone second-guess. I once spent weeks comparing the specs to get better savings. You want to do your homework.

For 2×4 walls, R13 and R15 insulation are best. R19 insulation is too thick for the cavity and loses effectiveness if compressed, so it is better used in 2×6 walls.

Here’s a table to show the main differences:

Both R13 and R15 are sized to fill a 2×4 cavity without compressing, preserving their stated R-value. R15 can offer slightly better performance, especially in climates with big temperature swings, though it costs more. R19 should not be used unless your wall studs are deeper. Using insulation that is too thick makes it hard to cover wiring and pipes, and may create gaps, which reduce energy efficiency.

Can you put R21 in a 2×4 wall?

Many people want the best insulation and think a higher R-value means more comfort. You might wonder if you could fit R21 into a 2×4 wall.

No, R21 insulation is too thick for a 2×4 wall. It is designed for 2×6 studs, and using it in a 2×4 wall compresses it so much that it loses its effectiveness.

To explain, R21 batts usually have a thickness around 5.5” to 6.25”, while most 2×4 wall cavities allow only 3.5”. By stuffing R21 batts into 2×4 walls, you compress the insulation fibers, which reduces their air-trapping pockets. Air is what helps insulation work, so less air space means less performance. Your R21 insulation ends up acting like R13 or R15—not worth the added cost. That’s why I always recommend selecting the right insulation thickness for the cavity, even if the temptation of a higher R-value is strong.

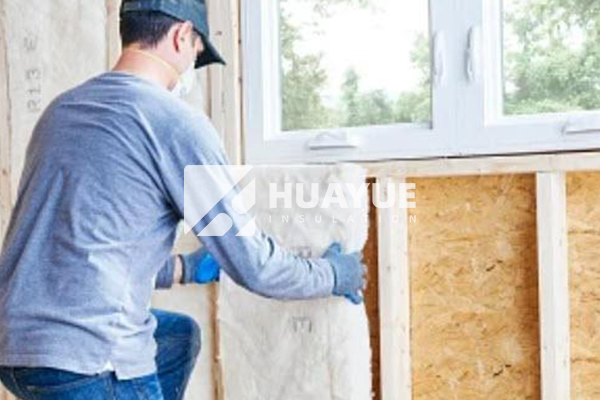

What insulation for 2×4 studs?

When building or renovating, finding the right insulation for your wall studs makes the difference between a drafty room or a truly comfortable home.

The best insulation choice for 2×4 studs is fiberglass batt insulation rated at R13 or R15, sized to fit the depth and width of the cavity.

There are several types you can consider:

Fiberglass batts are common, cheap, and easy to install. Rock wool is a good choice for extra fire resistance and noise protection. Foam boards can fit, but need cutting to size and may be harder around wires. Spray foam gives the highest R-value per inch, but costs much more, and you need a pro installer. I replaced my old insulation with fiberglass batts last year—it only took a day, and the comfort upgrade was instant.

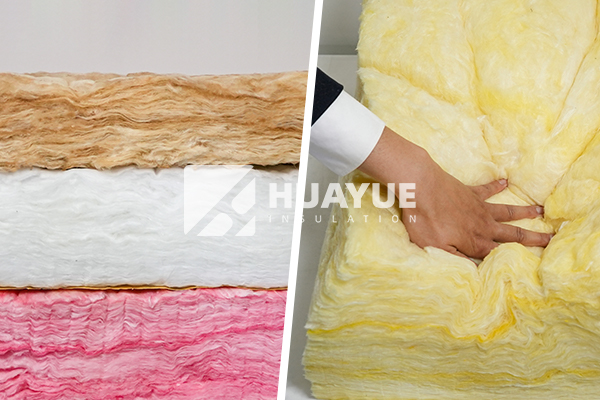

How thick is R19 insulation?

Sometimes you see high R-value products and wonder what size they really are—especially if you want to upgrade.

R19 insulation batts are about 6.25” thick. They are made for deeper wall cavities like those in 2×6 construction, not standard 2×4 walls.

The difference is important. A 2×4 wall cavity measures roughly 3.5” deep, so it cannot hold R19 insulation without compressing it. Compressing batt insulation lowers its R-value because it loses the air pockets that resist heat transfer. If your project uses 2×6 studs, then R19 is perfect. If you have 2×4 studs, stick with R13 or R15 options for a snug fit and optimal performance.

Conclusion

For 2×4 walls, R13 or R15 batt insulation is your best choice. Do not compress thicker batts; match insulation to wall cavity for real results.
